3S-24S Li-ion LiFePO4 BMS Battery Management System 5A-200A Customizable
ติดต่อฉันเพื่อตัวอย่างฟรีและคูปอง
WhatsApp:0086 18588475571
วีแชท: 0086 18588475571
สกายเป้: sales10@aixton.com
หากคุณมีปัญหา เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| Base Material | FR-4 | Copper Thickness | 0.5-4oz/1oz /2oz or custom |
|---|---|---|---|
| Board Thickness | 0.2-6mm | Min. Hole Size | T/2mm/0.2mm/0.15mm or Custom |
| Min. Line Width | 0.15mm/0.11mm or Custom | Min. Line Spacing | 0.15mm/0.11mm or Custom |
| Surface Finishing | HASL Lead Free | Number of Strings | 1-24S Custom |
| Voltage | 36V/48V/60V Custom | Balance Function | yes |
| Temp Sensor | yes | BT Function | yes |
| Size | 53*17.5mm | Customize Current | 10A-200A |
| Voltage Balancing Accuracy | ±25mV | ||
| เน้น | 3S-24S Li-ion BMS with warranty,Customizable LiFePO4 battery management system,5A-200A BMS for lithium batteries |
||
รายละเอียดสินค้า

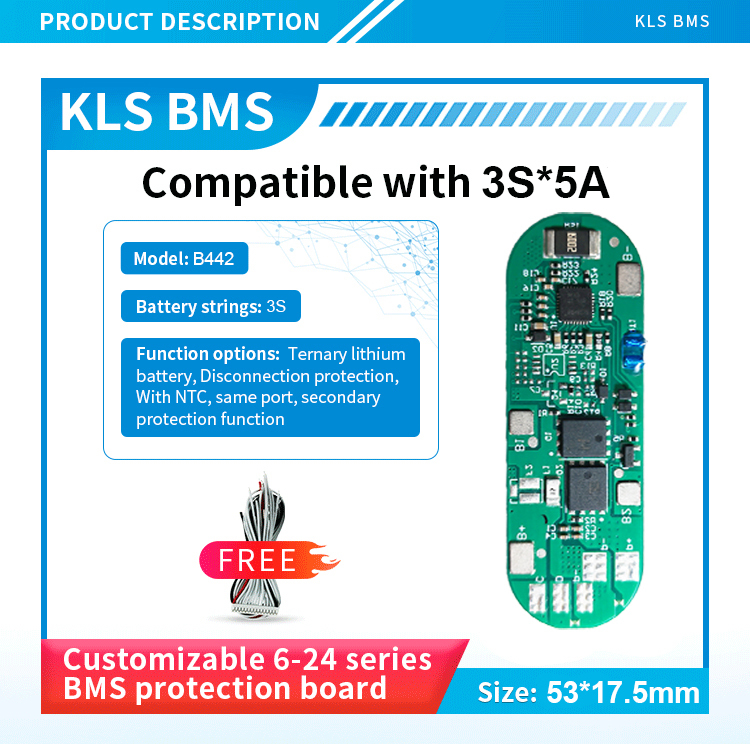

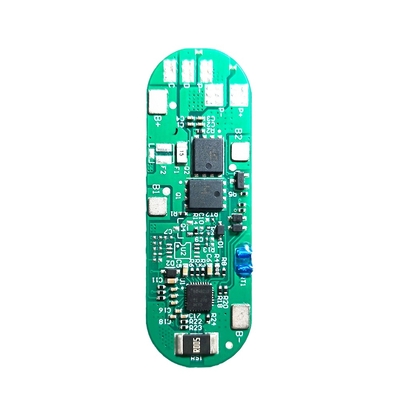

3S 5A BMS SMBUS BQ40Z50 Li-ion LifePO4 Battery Management System
Product Overview
Advanced 3S-24S Battery Management System with precise power monitoring for Li-ion and LiFePO4 batteries. Features include Bluetooth connectivity, temperature sensing, and balance functions for optimal battery performance.
Key Specifications
| Model | KLS-442 |
| Size | 53*17.5mm |
| Version | Common port for charge/discharge |
| Custom Current Range | 10A-200A |
| Battery Compatibility | 3S-24S lithium batteries |
| MOQ | 1pcs |
| Packaging | bubble bag/box |
Technical Attributes
| Attribute | Value |
|---|---|
| Base Material | FR-4 |
| Copper Thickness | 0.5-4oz/1oz /2oz or custom |
| Board Thickness | 0.2-6mm |
| Min. Hole Size | T/2mm/0.2mm/0.15mm or Custom |
| Min. Line Width | 0.15mm/0.11mm or Custom |
| Functional Application | Circuit Protection |
| Surface Finishing | HASL Lead Free |
| Number of Strings | 1-24S Custom |
| Voltage | 36V/48V/60V Custom |
| Applicable Battery | LiFePO4, Li-ion 18650 Bluetooth |

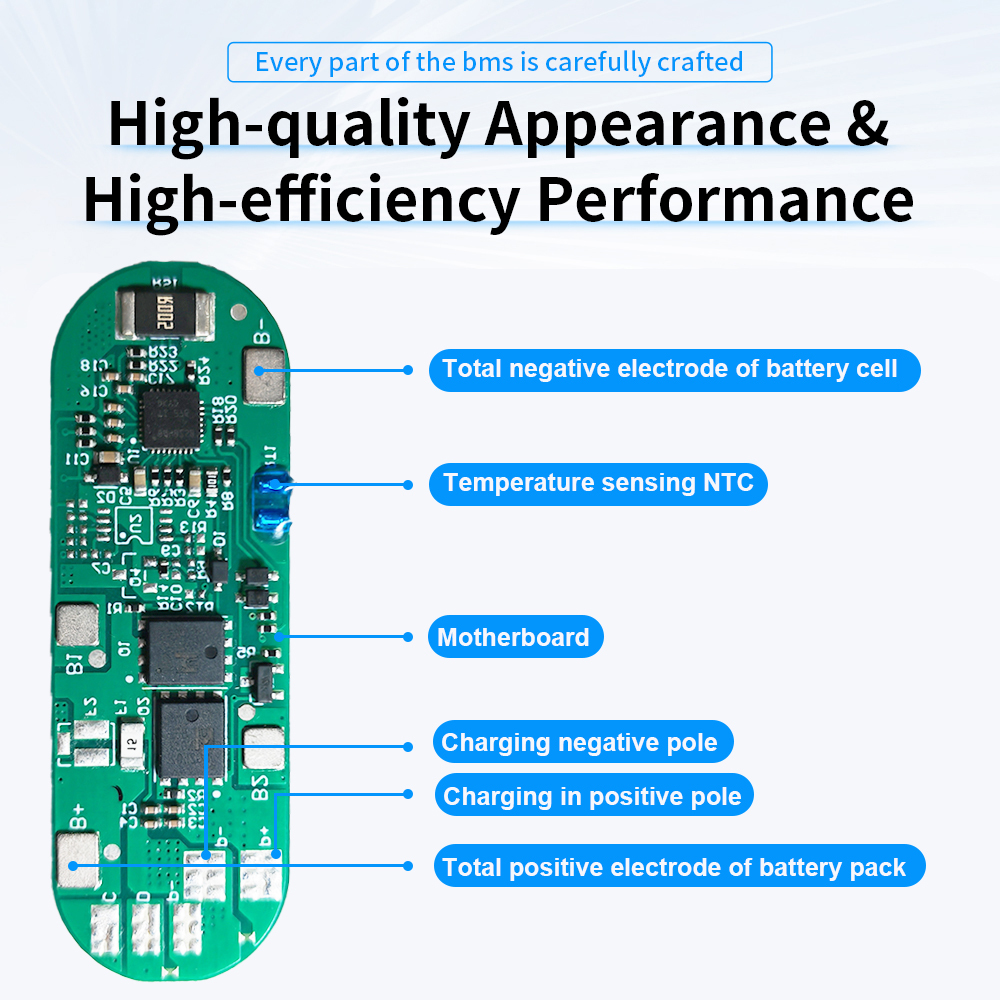

Features & Benefits
- Precise power monitoring and display
- Bluetooth connectivity for remote monitoring
- Advanced temperature sensing
- Cell balancing function
- Customizable for various battery configurations
- Certified to CE, FCC, ISO, ROHS, EPR standards
- OEM/ODM services available
Applications
Ideal for laptop batteries, power tools, electric vehicles, energy storage systems, and other applications requiring advanced battery management.
Frequently Asked Questions
Q1: What certifications do your BMS/protection boards hold?
Our products comply with CE, RoHS, and UL standards. Custom certifications are available for OEM/ODM projects with full documentation for market compliance.
Q2: Can you customize BMS parameters for different battery types?
Yes. We can customize voltage range (12V-72V), cell configuration, discharge current (up to 300A), and communication protocols (CAN/RS485/Bluetooth) for tailored solutions.
Q3: How does your BMS prevent critical failures?
Multi-layer protection includes ±25mV voltage balancing accuracy, ultra-low impedance MOSFETs, real-time temperature monitoring via NTC sensors, and SOC/SOH tracking with industrial-grade ICs.
Q4: What is your minimum order quantity and lead time?
Standard MOQ is 1 unit with 3-7 day lead time. Bulk orders (10,000+ units) qualify for 10-day expedited production and volume discounts.
Q5: Do you offer waterproof BMS for harsh environments?
Yes. We offer wide-temperature operation (-40°C to +85°C), vibration resistance, and automotive-grade connectors with custom sealing options available.
